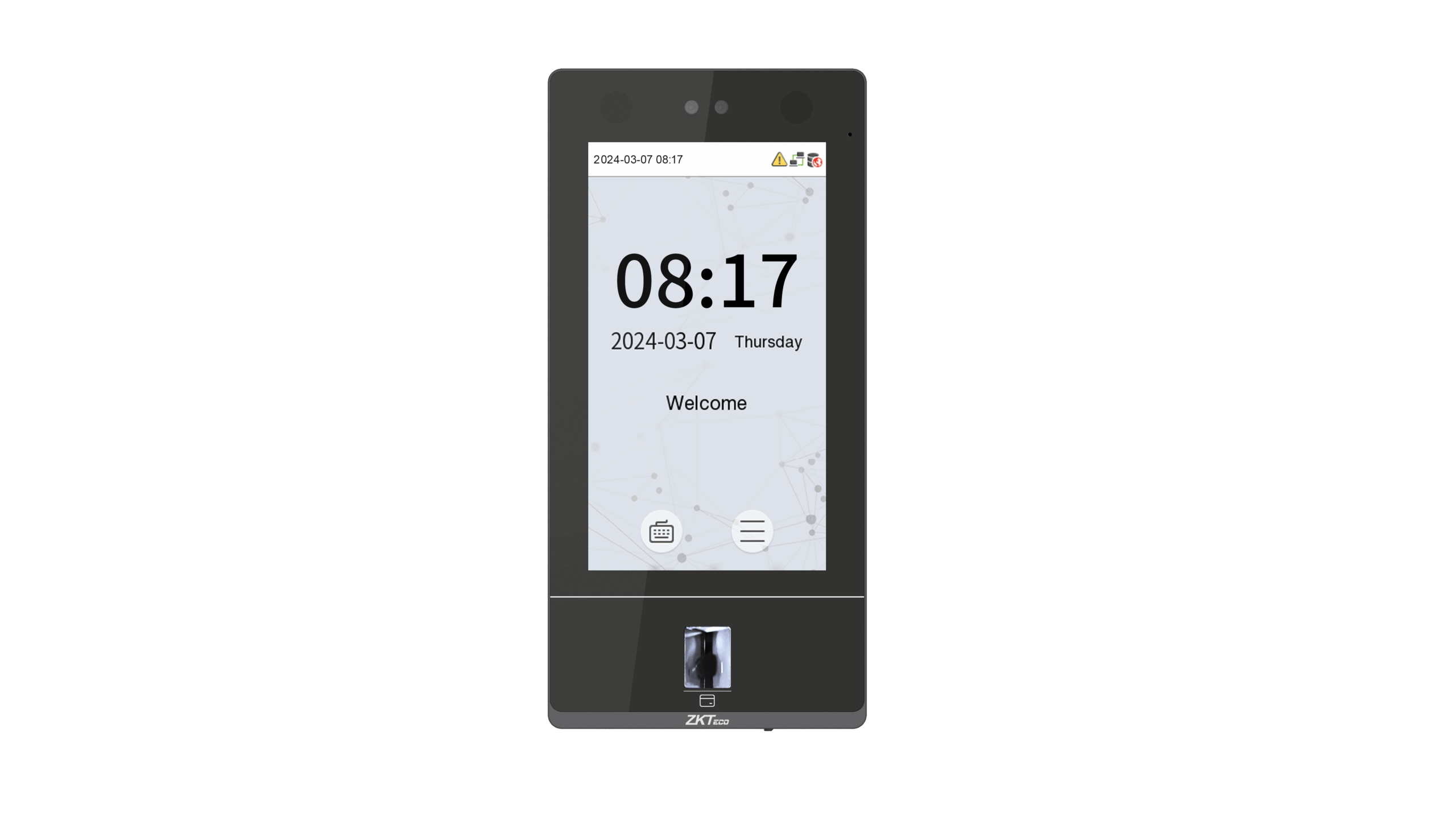

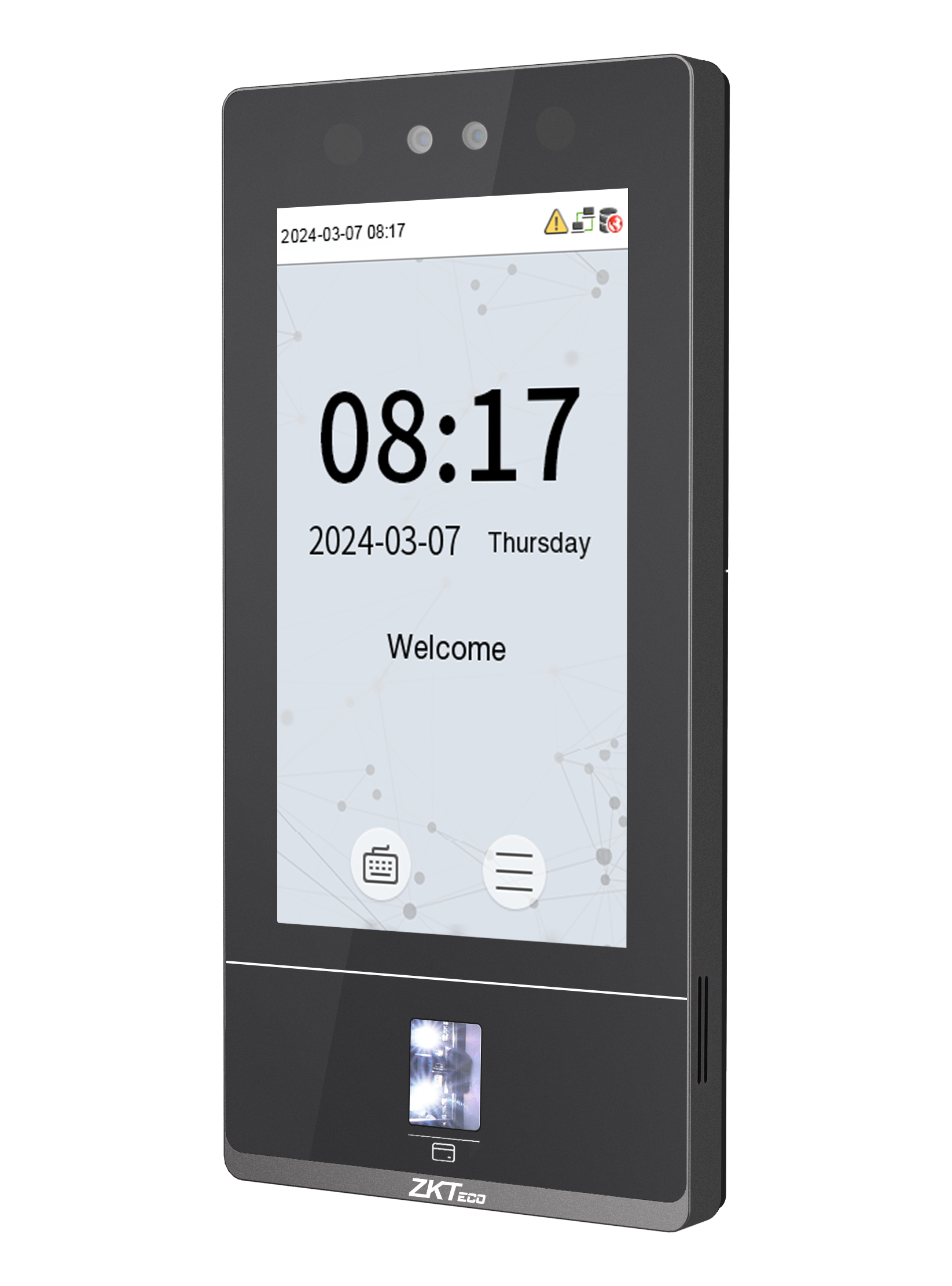

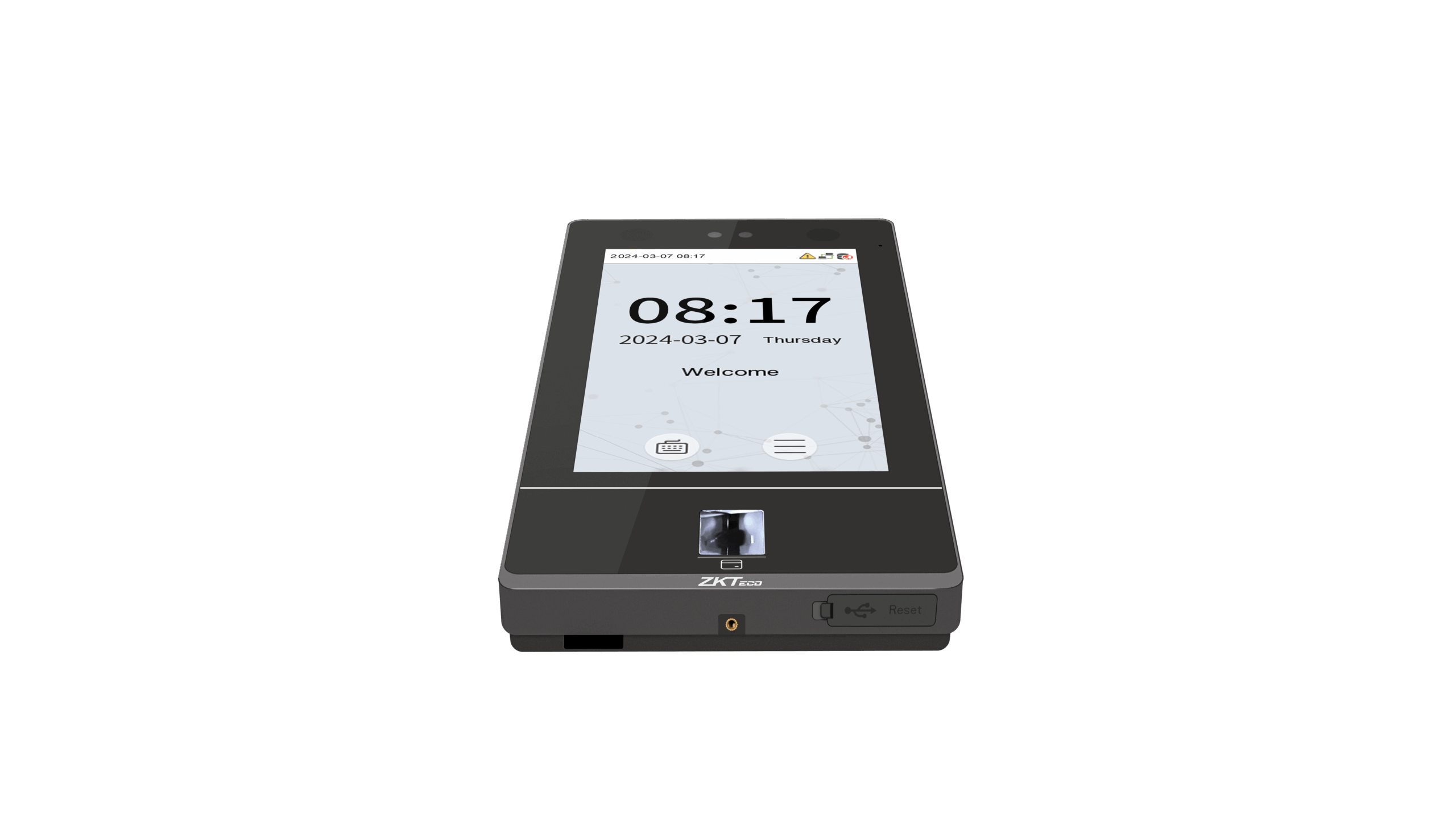

FaceDepot 7C
SIP-Ready Multi-Biometric Access Control Terminal with Video Intercom Capability
- Visible Light Facial Authentication Technology and In-glass Fingerprint Authentication
- Attained IP65 Protection Rating With Dustproof and Waterproof
- Multiple Authentication Methods: Face / Fingerprint / RFID / Password
- Available RFID Modules:125KHz ID Card / 13.56 MHz IC Card
- HD Video Door Phone Via SIP Protocol (Version 2.0). It is Compatible With ZKTeco SIP Video Intercom Indoor Monitor (VT07-B01and VT07-B01-W)
- User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive
- Compatible with wireless doorbell (optional)
- Advanced access control functions (Wiegand input or output shared; RS485 communication; Electric Lock; Door Sensor; Exit Button)
Description
SIP-Ready Multi-Biometric Access Control Terminal with Video Intercom Capability
- Visible Light Facial Authentication Technology and In-glass Fingerprint Authentication
- Attained IP65 Protection Rating With Dustproof and Waterproof
- Multiple Authentication Methods: Face / Fingerprint / RFID / Password
- Available RFID Modules:125KHz ID Card / 13.56 MHz IC Card
- HD Video Door Phone Via SIP Protocol (Version 2.0). It is Compatible With ZKTeco SIP Video Intercom Indoor Monitor (VT07-B01and VT07-B01-W)
- User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive
- Compatible with wireless doorbell (optional)
- Advanced access control functions (Wiegand input or output shared; RS485 communication; Electric Lock; Door Sensor; Exit Button)
SIP-Ready Multi-Biometric Access Control Terminal with Video Intercom Capability
- Visible Light Facial Authentication Technology and In-glass Fingerprint Authentication
- Attained IP65 Protection Rating With Dustproof and Waterproof
- Multiple Authentication Methods: Face / Fingerprint / RFID / Password
- Available RFID Modules:125KHz ID Card / 13.56 MHz IC Card
- HD Video Door Phone Via SIP Protocol (Version 2.0). It is Compatible With ZKTeco SIP Video Intercom Indoor Monitor (VT07-B01and VT07-B01-W)
- User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive
- Compatible with wireless doorbell (optional)
- Advanced access control functions (Wiegand input or output shared; RS485 communication; Electric Lock; Door Sensor; Exit Button)
Additional information
| Display | 7"@ TFT Color Touch LED Screen (600*1024) |
|---|---|
| Camera | WDR Binocular Camera @ 1MP |
| Face Template Capacity | 10,000 (1:N) |
| Fingerprint Capacity | 10,000 (1:N) (Standard) |
| Card Capacity | 50,000 (1:N) (Standard) |
| Card Type | ID Card @ 125 kHz (Standard) |
| Communication | TCP/IP*1 |
| Access Control Interface | RS485 (RS485 Card Reader / Biometric Reader) |
| Dimension | 238mm * 115mm * 22.3mm (L*W*H) |
| Hardware | CPU: Dual Core@1GHz |
| Facial Recognition Distance | 30cm to 200cm (Facial Authentication) |
| IP Rating | IP65 (waterproof and dustproof) |
| Operation System | Linux |
| Optional Functions | IC Card, Wi-Fi, Wireless Doorbell |
| Password Capacity | 8 Digits |
| Transaction Capacity | 300,000 (1:N) |
| Standard Functions | ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Operating Temperature | -5°C to 45°C |
| Supported Software | Software: ZKBio CVSecurity / easy TimePro |
| User Capacity | 50,000 (1:N) (Standard) |
| Verification Speed | less than 0.5 sec (Fingerprint) less than 0.35 sec (Facial Authentication) |
